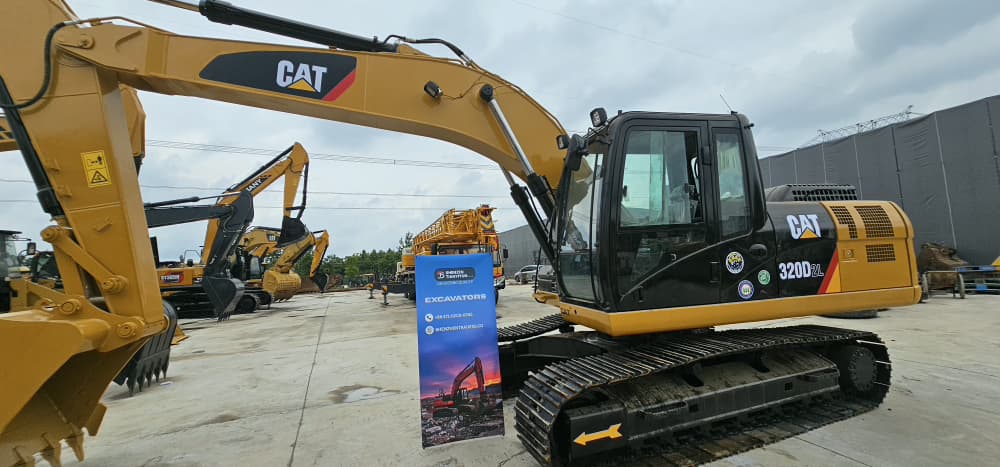

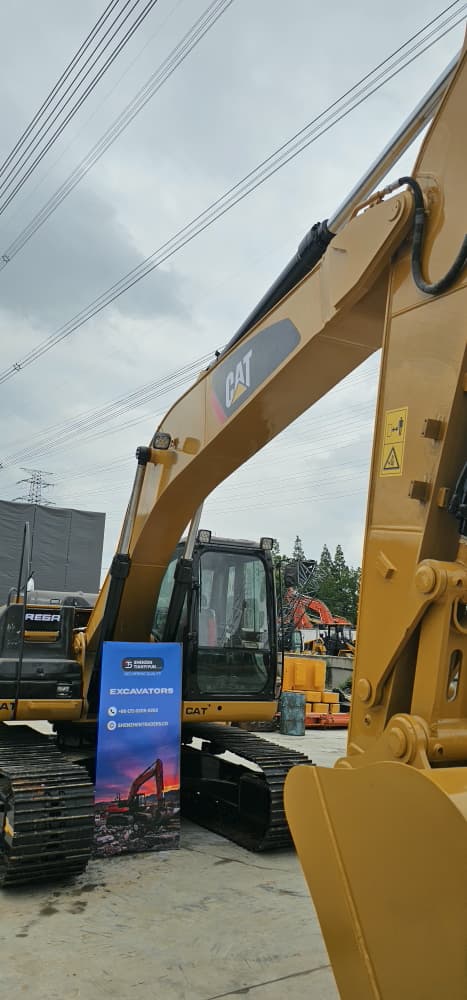

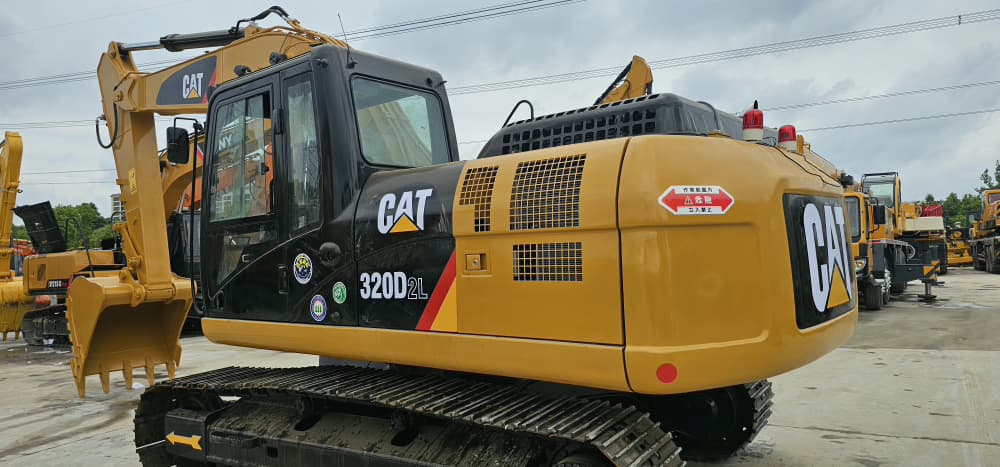

Put heavy-duty power and efficiency to work on your job site with this 2017 Caterpillar 320D2 L hydraulic excavator. Engineered for demanding earthmoving, trenching, and material handling applications, this 20-ton machine combines Caterpillar’s renowned structural durability with rapid cycle times and low operating costs. Featuring a long undercarriage (L) for maximum working stability and an original 0.92 m³ (1.2 yd³) bucket capacity, this inspected, well-maintained unit is in prime operating condition and ready for immediate global export from China.



Key Technical Specifications

General Overview
Feature / Detail Specification
Machine Model Caterpillar 320D2 L
Year of Manufacture 2017
Category Hydraulic Crawler Excavator
Condition Used – Inspected & Well Maintained
Origin Original Import
Operating Hours Available upon request
Location China
Export Status Clean title, original paint, export ready
Engine Specifications
Specification Technical Detail
Engine Model Cat® C6.6 ACERT™
Engine Type 6-Cylinder, In-line, Turbocharged, Water-Cooled Diesel
Displacement 6.6 Liters (403 cu in)
Gross Power 125 kW / 168 HP @ 2000 RPM
Net Power 121 kW / 162 HP @ 2000 RPM
Max Torque 690 Nm @ 1400 RPM
Fuel System Cat Common Rail Fuel System
Emissions Standard EPA Tier 3 / EU Stage IIIA
Emissions System No DPF Filter Required / No AdBlue (DEF) Needed
Cooling System Air-to-Air Aftercooler (25 L capacity)
Machine Dimensions & Working Capabilities
Parameter Specification
Operating Weight 20,300 kg (44,754 lbs)

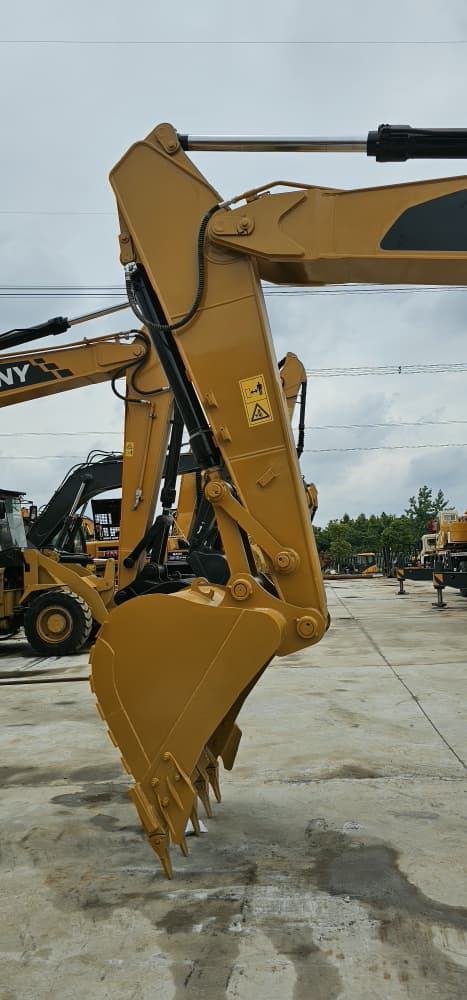

Bucket Capacity 0.92 m³ (1.2 yd³)
Maximum Digging Depth 6,700 mm (22 ft 0 in)
Undercarriage Type Long Undercarriage (L) for enhanced stability
Service Intervals 500-Hour Oil Change Intervals



Machine Overview & Key Advantages

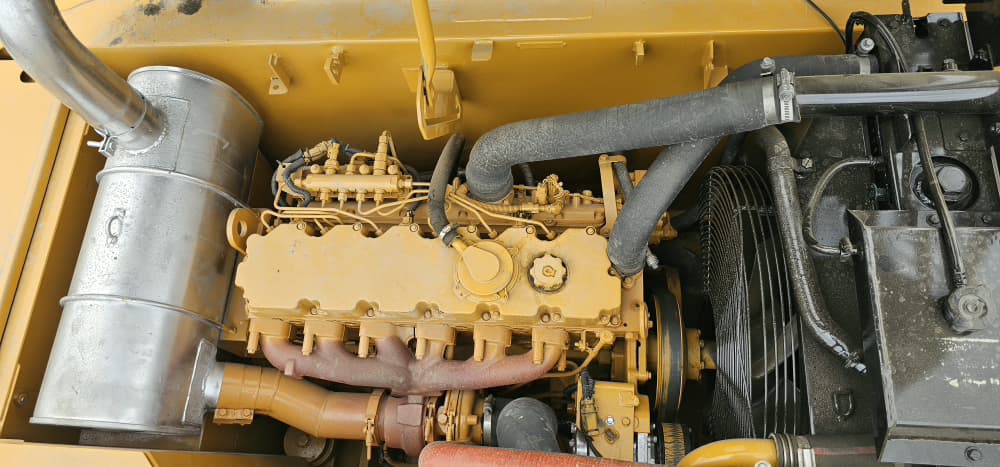

Cat C6.6 ACERT Engine & Hydraulic Performance

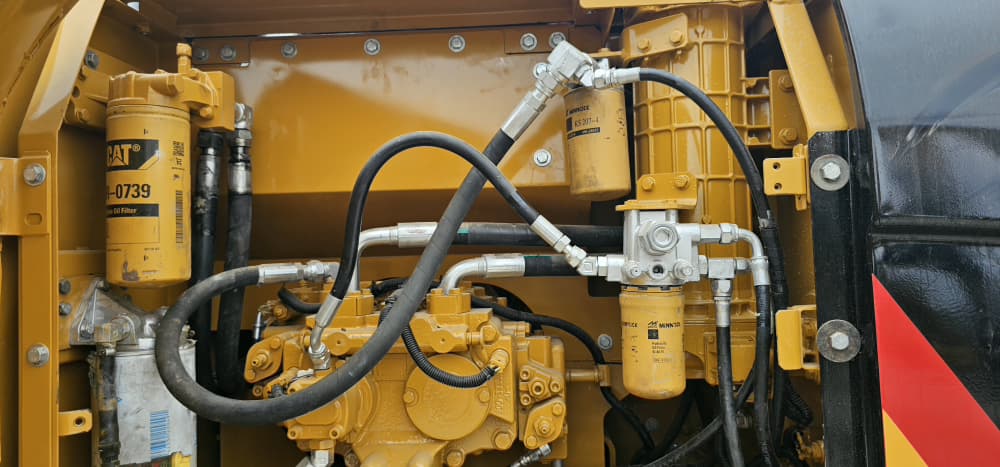

At the heart of the 320D2 L is the proven 6.6-liter turbocharged Cat C6.6 ACERT engine, delivering 168 HP (125 kW) at 2000 RPM. Paired seamlessly with Caterpillar’s high-pressure hydraulic system, this powertrain delivers exceptional breakout force and fast, responsive control. Whether performing heavy excavation or smooth grading, the C6.6 engine ensures consistent performance under tough ground conditions without sacrificing speed or productivity.

Fuel Efficiency & Simplified Tier 3 Maintenance

Designed to lower your overall cost of ownership, the Common Rail fuel system on the C6.6 engine achieves up to 10% better fuel efficiency compared to older 320D series models. Compliant with EPA Tier 3 / EU Stage IIIA emission standards, this machine operates without complex DPF filters or AdBlue/DEF fluid systems. This straightforward mechanical setup prevents costly emission system downtime, tolerates variable fuel qualities in developing markets, and allows for quick, ground-level routine maintenance with extended 500-hour service intervals.

Proven Durability & High Productivity

Built on a reinforced X-frame carbody and a long undercarriage, the 320D2 L boasts an operating weight of 20,300 kg (44,754 lbs) for superior traction, lifting balance, and digging stability. With a maximum digging depth of 22 feet (6,700 mm) and a reach engineered for deep trenching and high-dump loading, this machine handles heavy civil construction, mining support, and infrastructure projects with proven 10,000+ hour component reliability.



Worldwide Port Delivery & Export Readiness

Located in China, this 2017 unit features clean structural components, original paint, and a fully functional operator cab. Our team provides complete logistics support, handling inland trailer transportation directly to the shipping port for bulk or RORO vessel delivery to destination ports across Africa, the Middle East, South America, and the Caribbean.
